| 當前位置:首頁--無刷直流電機-- |
 |
 |
|
| 直流無刷電機現貨批發！廠家直銷 價格實惠，配套齊全！（JC） |
| 2016年6月14日 |

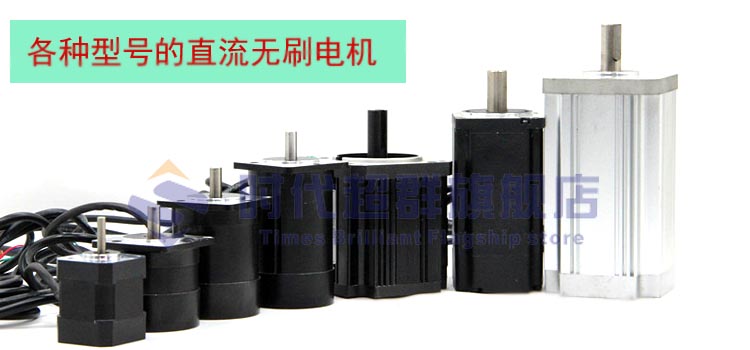

我公司專業生產直流無刷電機，有眾多型號 42 57 60 80 110等規格無刷電機備有大量現貨庫存 ，提供批發，非標定做等！價格實惠，配套產品齊全。
| 產品型號 | 極對數 | 額定電壓
(V) | 額定功率
(W) | 額定
轉速
(rpm) | 額定轉矩
(Nm) | 額定電流
(A) | 空載電流
(A) | 空載轉速
(rpm) | 機身長
(mm) | | 42系列 |
|
|
|
|
|
|
|
|
| | 42BL50S03-230TR9 | 4 | 24 | 30 | 3000 | 0.1 | 1.6 | 0.1 | 3800 | 50 | | 42BL60S06-230TR9 | 4 | 24 | 60 | 3000 | 0.2 | 3 | 0.1 | 3800 | 60 | | 42BL80S09-230TR0 | 4 | 24 | 90 | 3000 | 0.3 | 4.7 | 0.1 | 3800 | 80 | | 42BL80S09-440TR9 | 3 | 48 | 90 | 4000 | 0.215 | 3 | 0.1 | 5000 | 80 | | 57系列 |
|
|
|
|
|
|
|
|
| | 57BL55S02-212TF9 | 4 | 24 | 22 | 1200 | 0.18 | 1.4 | 0.2 | 2000 | 55 | | 57BL55S06-230TF9 | 2 | 24 | 60 | 3000 | 0.18 | 3.3 | 0.3 | 4800 | 55 | | 57BL55S06-230TF9B | 2 | 24 | 60 | 3000 | 0.18 | 3.3 | 0.3 | 4800 | 55 | | 57BL75S05-130TF9 | 3 | 12 | 50 | 3000 | 0.16 | 6.8 | 0.7 | 3000 | 75 | | 57BL75S06-130DR9 | 3 | 12 | 60 | 3000 | 0.18 | 6.8 | 0.3 | 4800 | 75 | | 57BL75S10-225TF9 | 4 | 24 | 100 | 2500 | 0.38 | 5.9 | 0.8 | 3500 | 75 | | 57BL75S10-225TK9 | 4 | 24 | 100 | 2500 | 0.38 | 5.9 | 0.8 | 3500 | 75 | | 57BL75S10-230TF9 | 2 | 24 | 100 | 3000 | 0.32 | 5.9 | 0.8 | 4500 | 75 | | 57BL75S10-230TF9B | 2 | 24 | 100 | 3000 | 0.32 | 5.9 | 0.8 | 4500 | 75 | 57BL95S13-3100TF9
| 3 | 36 | 133 | 10000 | 0.127 | 5.1 | 0.8 | 11000 | 95 | | 57BL75S10-336TF9 | 4 | 36 | 145 | 3600 | 0.4 | 5.3 | 0.2 | 4600 | 75 | | 57BL95S06-210TF0 | 4 | 24 | 60 | 1000 | 0.6 | 3.6 | 0.4 | 1600 | 95 | | 57BL95S06-210TF9 | 4 | 24 | 60 | 1000 | 0.6 | 3.6 | 0.4 | 2000 | 95 | | 57BL95S06-210DK9 | 3 | 24 | 60 | 1000 | 0.6 | 3.6 | 0.4 | 2000 | 95 | | 57BL95S15-230TF9 | 2 | 24 | 150 | 3000 | 0.5 | 8.7 | 0.8 | 4500 | 95 | | 57BL95S15-230TF9B | 2 | 24 | 150 | 3000 |
| 8.7 | 0.8 | 4500 | 95 | | 57BL95S15-230TF9-L1.5 | 2 | 24 | 150 | 3000 | 0.5 | 8.7 | 0.8 | 4500 | 95 | | 57BL95S15-230TF9-L1.5 | 2 | 24 | 150 | 3000 | 0.5 | 8.7 | 0.8 | 4500 | 95 | | 57BL95S15-336TF9 | 2 | 36 | 150 | 3600 | 0.4 | 5.7 | 0.5 | 4700 | 95 | | 57BL95S18-230TF0 | 4 | 24 | 180 | 3000 | 0.6 | 10 | 0.3 | 4200 | 95 | | 57BL110S21-230TF0 | 4 | 24 | 210 | 3000 | 0.7 | 11 | 0.3 | 4600 | 110 | | 57BL115S30-3150TF9 | 4 | 310 | 300 | 5000 | 0.57 | 1.3 | 0.2 | 6200 | 115 | | 57BL122R18-332TF0 | 4 | 36 | 180 | 3200 | 0.54 | 5.3 | 0.3 | 4000 | 122 | | 60系列 |
|
|
|
|
|
|
|
|
| | 60BL100S15-230TF0 | 8 | 24 | 150 | 3000 | 0.5 | 8 | 0.8 | 4000 | 100 | | 60BL100S15-230TF0B | 8 | 24 | 150 | 3000 | 0.5 | 8 | 0.8 | 4000 | 100 | | 60BL120S25-430TF0 | 8 | 48 | 250 | 3000 | 0.75 | 7 | 0.5 | 3500 | 120 | | 60BL120S25-3130TF0 | 8 | 310 | 250 | 3000 | 0.75 | 1.5 | 0.2 | 3500 | 120 | | 80系列 |
|
|
|
|
|
|
|
|
| | 80BL89S25-430TK0 | 5 | 48 | 250 | 3000 | 0.75 | 7 | 0.5 | 4000 | 89 | | 80BL89S40-430TK0 | 5 | 48 | 400 | 3000 | 1.27 | 11 | 0.5 | 4000 | 89 | | 80BL89S40-445TK0 | 3 | 48 | 400 | 4500 | 0.8 | 11 | 1 | 5900 | 89 | | 80BL89S50-445TK0 | 3 | 48 | 500 | 4500 | 1.2 | 15 | 1 | 5900 | 89 | | 80BL116S50-430TK0 | 5 | 48 | 500 | 3000 | 1.6 | 15 | 0.5 | 4000 | 116 | | 80BL145S55-445TK0 | 4 | 48 | 550 | 4500 | 1.6 | 15 | 1.4 | 6000 | 145 | | 80BL145S55-3130TK0 | 4 | 310 | 550 | 3000 | 1.6 | 2.4 | 0.6 | 5000 | 145 | | 80BL148S75-3130TK0 | 4 | 310 | 750 | 3000 | 2.5 | 3.2 | 0.3 | 4200 | 148 | | 80BL165S55-3115TK0 | 4 | 310 | 550 | 1500 | 3.5 | 2.4 | 0.3 | 2100 | 165 | | 80BL165S75-3130TK0 | 4 | 310 | 750 | 3000 | 2.5 | 3.2 | 0.3 | 4200 | 165/145 | | 80BL180S120-3140TK0 | 4 | 310 | 1200 | 4000 | 3 | 3.2 | 0.3 | 5000 | 180 |
